Voltage: 90~264VAC


IP Rating:IP66

Color Temperature:3000K~6500K

Application:tunnels, subway, gas station, etc.

Contact Now

Product Introduction

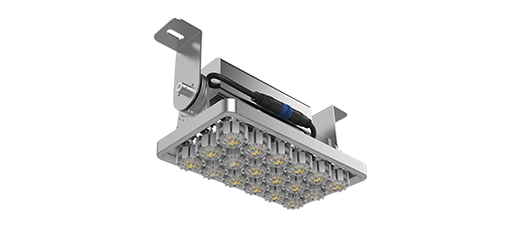

C0820-VC dimmable ceramic pixel tunnel light is a new type of lighting fixture with high-brightness LED as the light source. The color temperature of the light source can be changed from 3000K warm white light to 6500K cold white light. Combined with the monitoring of the tunnel light environment, the intelligent lighting control technology can realize the tunnel light environment.



The color temperature can be adjusted from 3000K warm white light to 6500K cool white light to meet the comfort and safety of tunnel lighting.

A variety of efficient light distribution lenses to meet different application needs.

Adopting ceramic heat sink body without PCB for faster heat dissipation.

The light body is forged with high quality aluminum, no rust with longer lifespan.

Support multiple intelligent dimming methods.

The product is moisture-proof, waterproof, transparent, easy to install disassemble and maintain.


What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Technical Parameters

Model Wattage Luminous Flux CCT CRI Input Power Dimension
C0810-VC 20-40W ≥130±5 lm/W 3000K-6500K ≥70 90-264VAC 261*139*153
50-60W 321*139*161
70-80W 321*139*161
90-120W 428*145*161
130-160W 540*145*161
170-240W 747*145*161
