C0802-ZR

LED Street Lights


Ceramic Heat-dissipation Technology

Contact Now





Unique Ceramic Heat Dissipation Technology

Developed By Sansi, No Mcpcb, Better Performance



Each light-emitting body is an independent pixel, which can effectively reduce the "heatisland effect",
speed up the heat dissipation, reduce the junction temperature of the LED chip. and thus greatly improve the light efficiency,
lifespan and reliability of the lamps.


Ceramic Heat-dissipation Technology

Main Advantages

Main AdvantagesMain Advantages

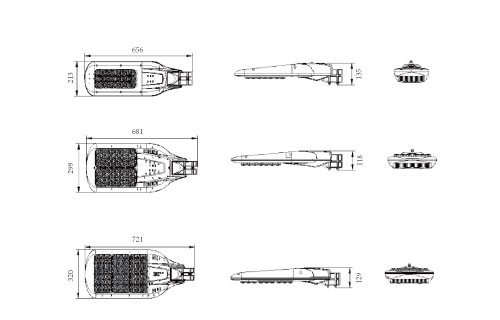

Dimensions (mm)

Dimensions (mm)

What kind of LED products or service do you want ? Where are your projects ? If you are a Brand Distributor, Wholesaler, Retailer, Project Distributor or Developer; or just want to do Brand OEM, please leave us a message, we will have you a more accurate quotation in time.

Technical Parameters

Input Voltage Power Dimmable Luminous Efficacy CCT Life span Certification
100-240V 50/60Hz 40W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 80W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 100W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 120W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 150W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 200W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 250W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC
100-240V 50/60Hz 300W Yes 130LM/W 3000K-5000K 50,000 hrs CQC/CB/CE/ENEC

Application

More of SANSI LED products' applications in its related scenarios, exclusive customizations with customers' specific requirements
